Product Code: SAG / SAR / RAG / RAR
Grilles & Registers
شبكات وسجلات

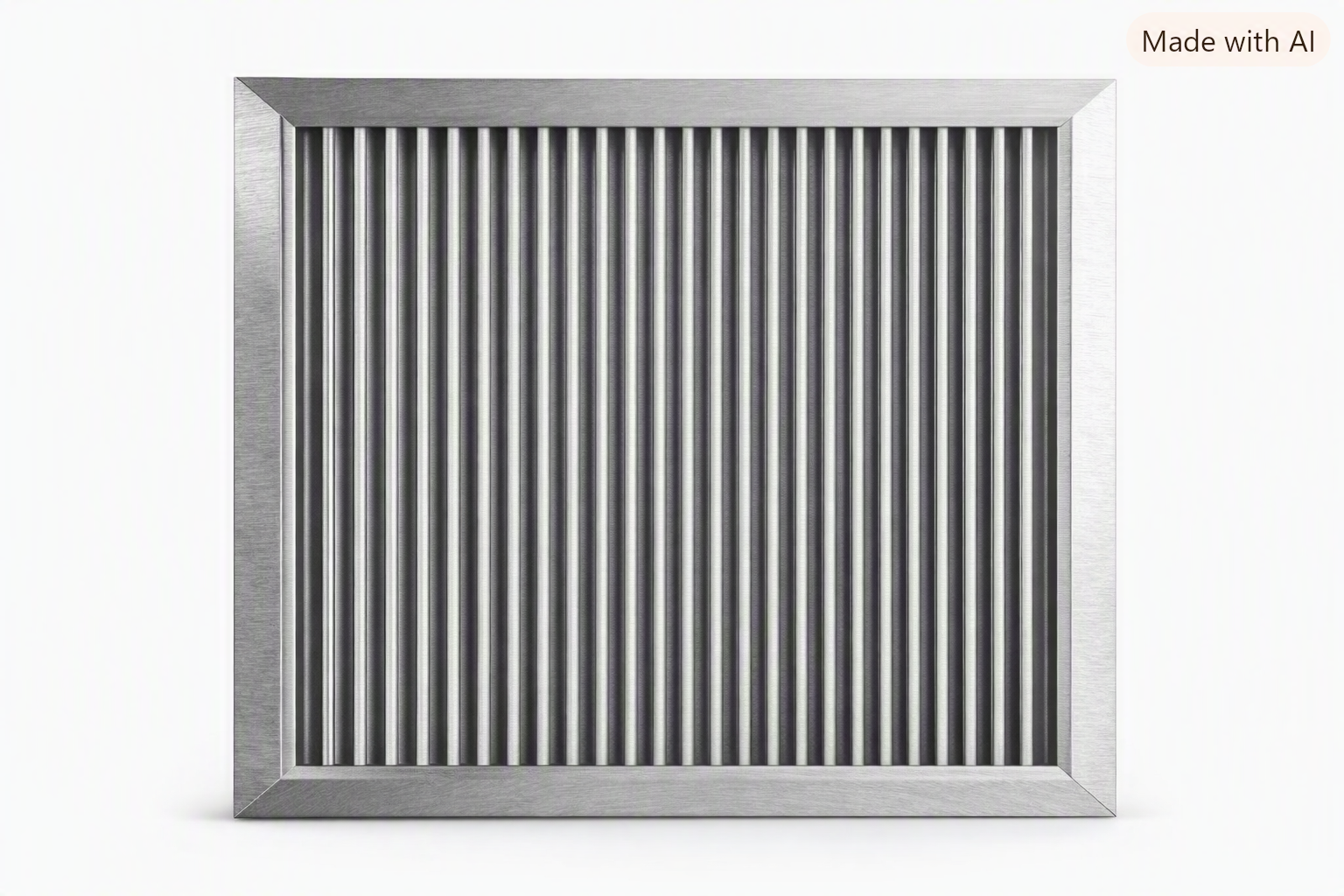

SAG Series supply and return air grilles and registers — extruded aluminium alloy construction for residential, commercial and industrial HVAC applications.
Frame Material
Quick Query?
WhatsApp Us →
ISO 9001:2015SMACNADW144
Description
Product Description
The SAG Series supply air grilles and registers are designed to cater to a variety of building applications, including residential, commercial, and industrial settings. These outlets can be seamlessly integrated into high sidewalls and ceilings, providing versatility in installation. Whether for horizontal or vertical airflow, they offer compatibility with exposed air ducts by directly connecting to duct collars.
Double Deflection Design
Models SAG/SAR HFB/VFB offer double deflection blades for adjustment of spread in both horizontal and vertical planes simultaneously.
PVC Bushing Blade Mount
Aluminium blades mounted in frame using PVC bushings — allows effortless deflection angle adjustment without noise or vibration.
Optional Volume Control Damper
Opposed blade damper attaches to grille top using locking clips. Adjusted from face by screwdriver — reduces effective area by ~5%.
Multiple Models
SAG (Grille) and SAR (Register) in HFB and VFB orientations — supply and return configurations available.

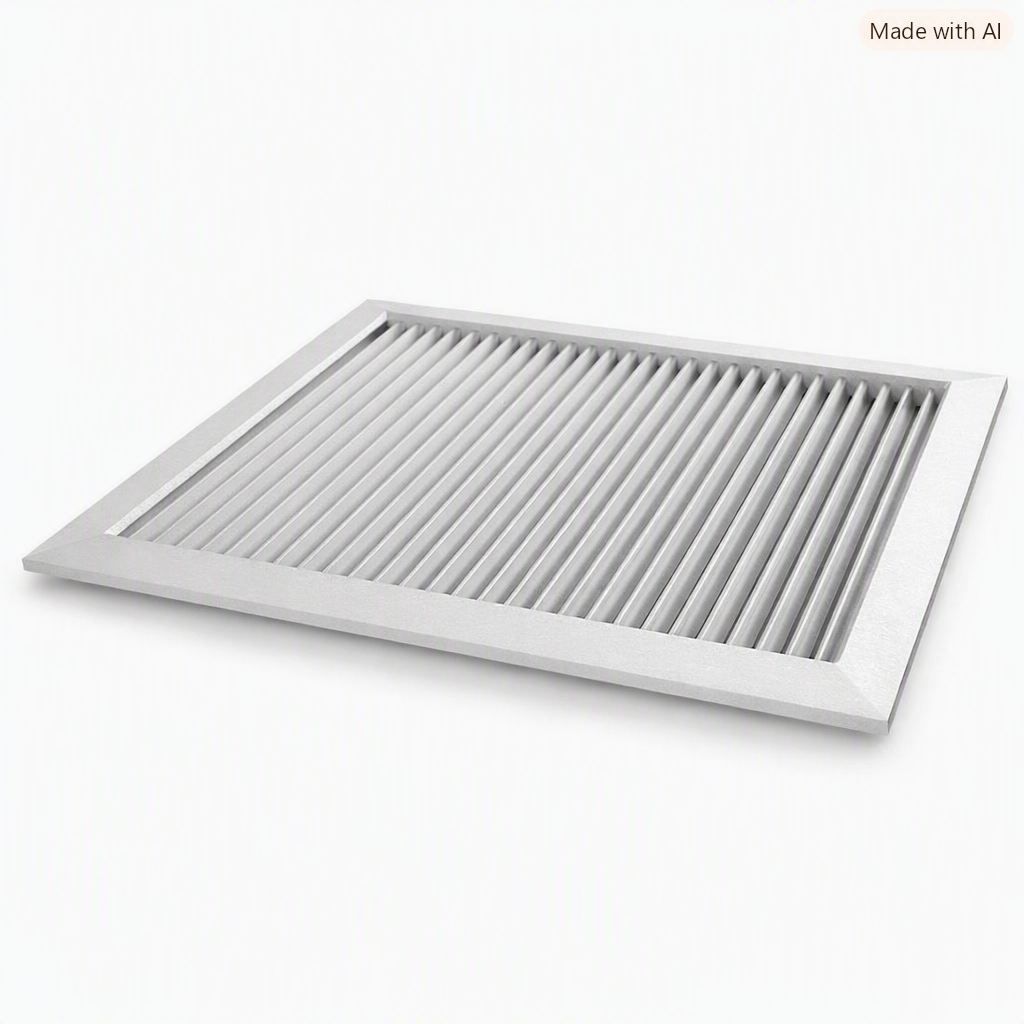

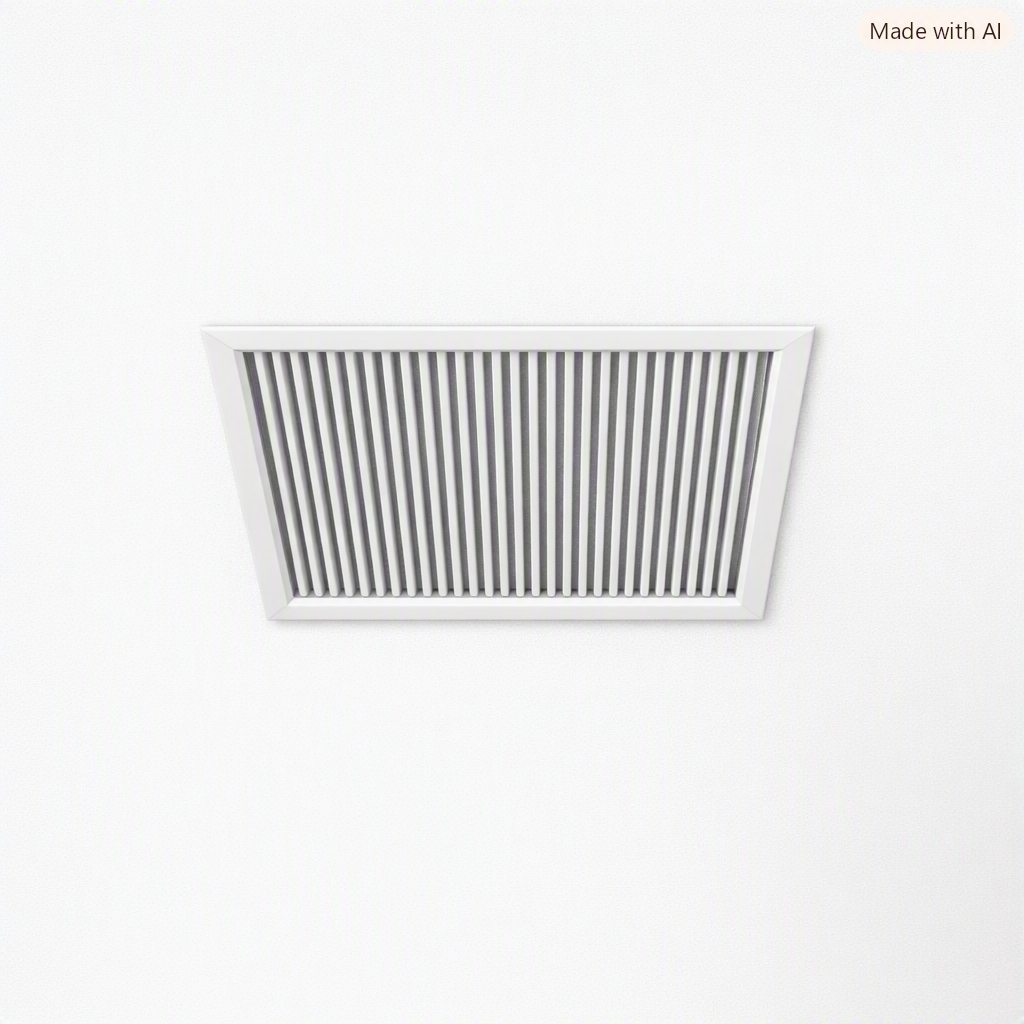

Versatile Installation
Suitable for high sidewalls, ceilings and direct duct collar connection. Horizontal or vertical airflow patterns.
Custom Finishes
Standard RAL 9010 white powder coat. Natural anodized, mill finish or custom RAL colours available on request.
Specifications
Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Frame & Blade Material | Extruded aluminium alloy profiles with PVC bushings | — |
| Models — Supply | SAG HFB/VFB · SAR HFB/VFB (Double deflection) | — |
| Models — Supply Single | SAG H/V · SAR H/V (Single deflection) | — |
| Models — Return | RAG H/V · RAR H/V (Single deflection) | — |
| Blade Deflection Range | 0° to 45° | ° |
| Spread @ 0° blade setting | ~20° | ° |
| Spread @ 22.5° blade setting | ~30° | ° |
| Spread @ 45° blade setting | ~60° | ° |
| Throw reduction @ 45° | ~50% less than straight blades | — |
| Noise Level | NC 15–35 dB (tabulated per size) | NC |
| Standard Finish | Polyester powder coat white RAL 9010 | — |
| Country of Origin | Egypt | — |
Applications
Fields of Application
Commercial & Industrial HVAC Projects
Quality Assurance
Tests & Certificates
Duct Test
Rigorous leakage and pressure testing to SMACNA and DW144 standards.
Duct Test 01
Duct Test 02
Duct Test 03
Air Tests
Air velocity and distribution testing.
Air Test 01
Air Test 02
