Product Code: CEI-HFB / HF-AN-DP

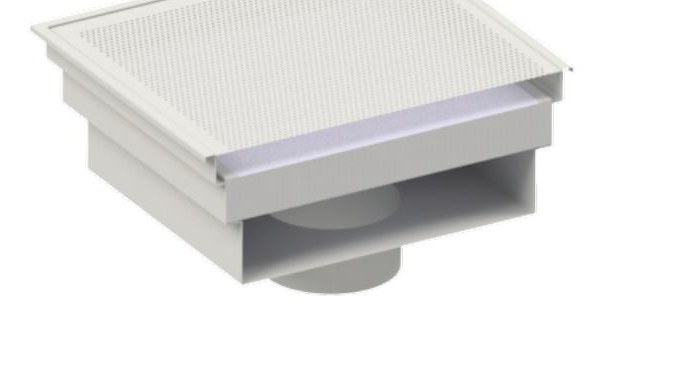

HEPA Filter Box
صندوق فلتر هيبا
Terminal HEPA filter box for critical-air environments. Airtight housing houses an EN 1822-certified filter (E10 to H14) with a perforated or swirl diffuser face. Available in galvanized steel or stainless steel with Top, Side or Zed inlet configurations.
Housing Material
Product Description
The Castle HEPA Filter Box is a sealed terminal enclosure that houses a high-efficiency particulate air filter and delivers highly purified air where air quality is critical. Combining a leak-tight housing with an EN 1822-certified filter element, it removes airborne particles — dust, pollen, bacteria, mold spores — before the air enters the space. Available with Top, Side or Zed inlet configurations and a choice of perforated or swirl diffuser face, mounted in ceilings, walls or ductwork as a terminal unit in cleanrooms, healthcare and pharmaceutical facilities.
Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Housing Material | Galvanized steel or stainless steel (SS304 / SS316) | — |
| Filter Frame | Extruded anodized aluminium | — |
| Filter Media | Micro glass fibre — mini-pleat design | — |
| Filter Efficiency (EN 1822) | E10, E11, E12, H13, H14 (U15 on request) | — |
| Filter Gasket | Flat EPDM or endless polyurethane | — |
| Bonding Media | Two-component polyurethane | — |
| Max. Operating Temperature | 80 | °C |
| Filter Height | 65 | mm |

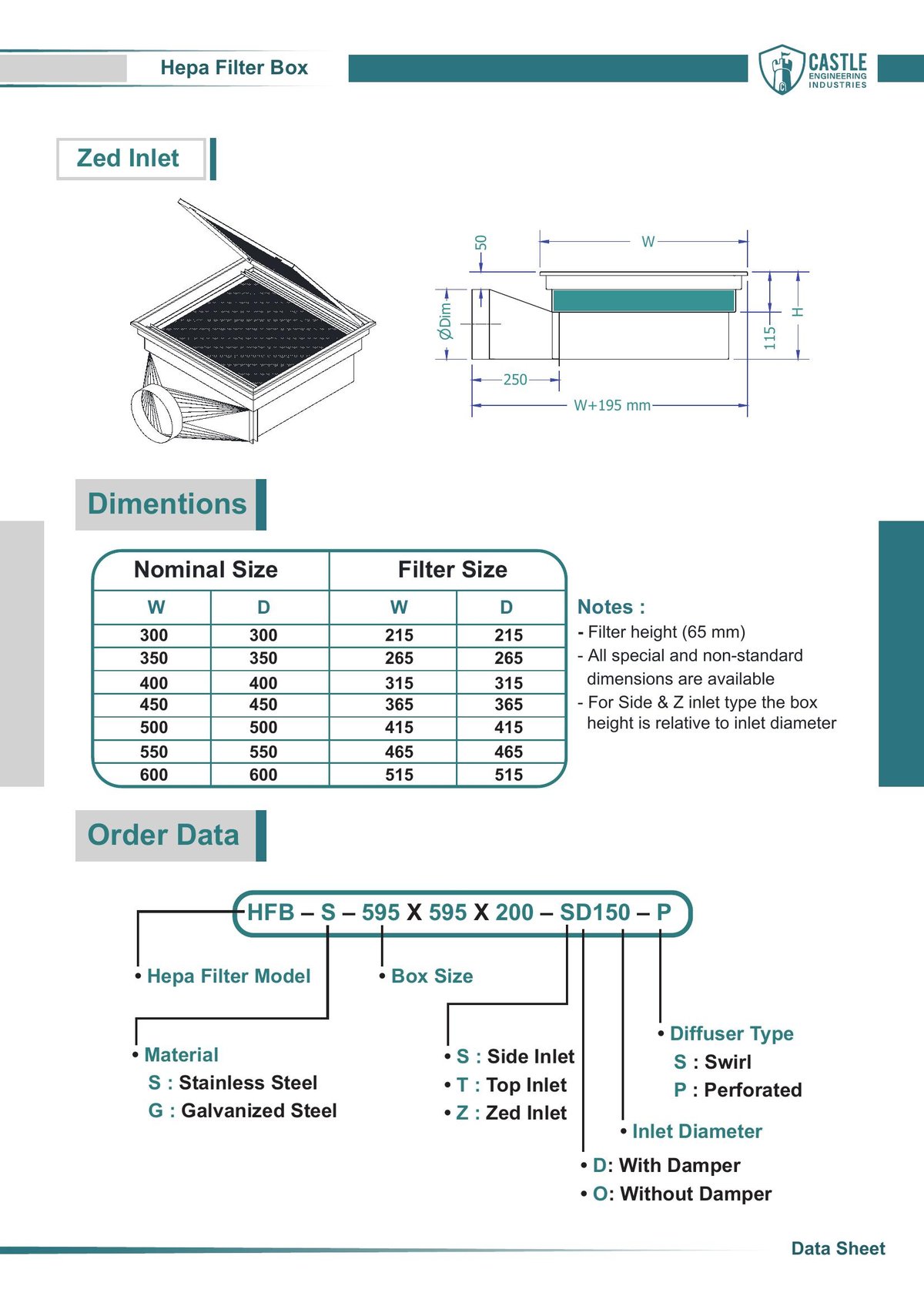

| Standard Nominal Sizes | 300×300, 350×350, 400×400, 450×450, 500×500, 550×550, 600×600 | mm |

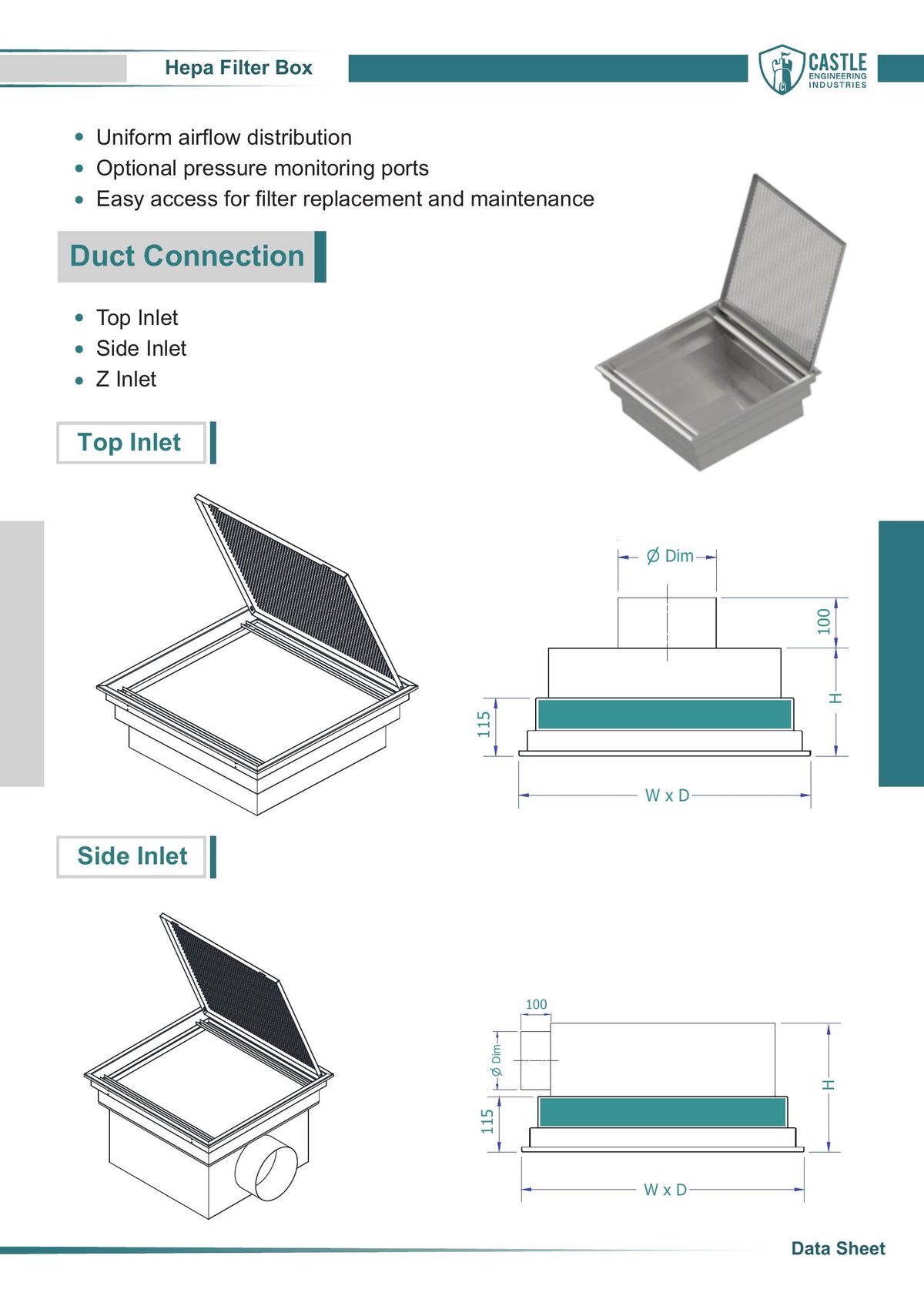

| Inlet Configurations | Top / Side / Zed | — |
| Diffuser Face | Perforated or swirl | — |
| Damper | Optional integrated volume control damper | — |
| Pressure Monitoring | Optional test ports for DOP / PAO integrity testing | — |
| Face Guard | Optional protection grid | — |
Fields of Application
Tests & Certificates
ISO Certification
International Quality Certifications
International Standards
EN 1822 · SMACNA · DW144 · IGC · UL
Filter Test
Individual EN 1822 particle-count leak test per filter — MPPS efficiency verified to declared class.
Air Tests
Air velocity, uniformity and pressure-drop testing per Castle in-house protocol.
