Product Code: LBG / LBR / SLBG / SLBR

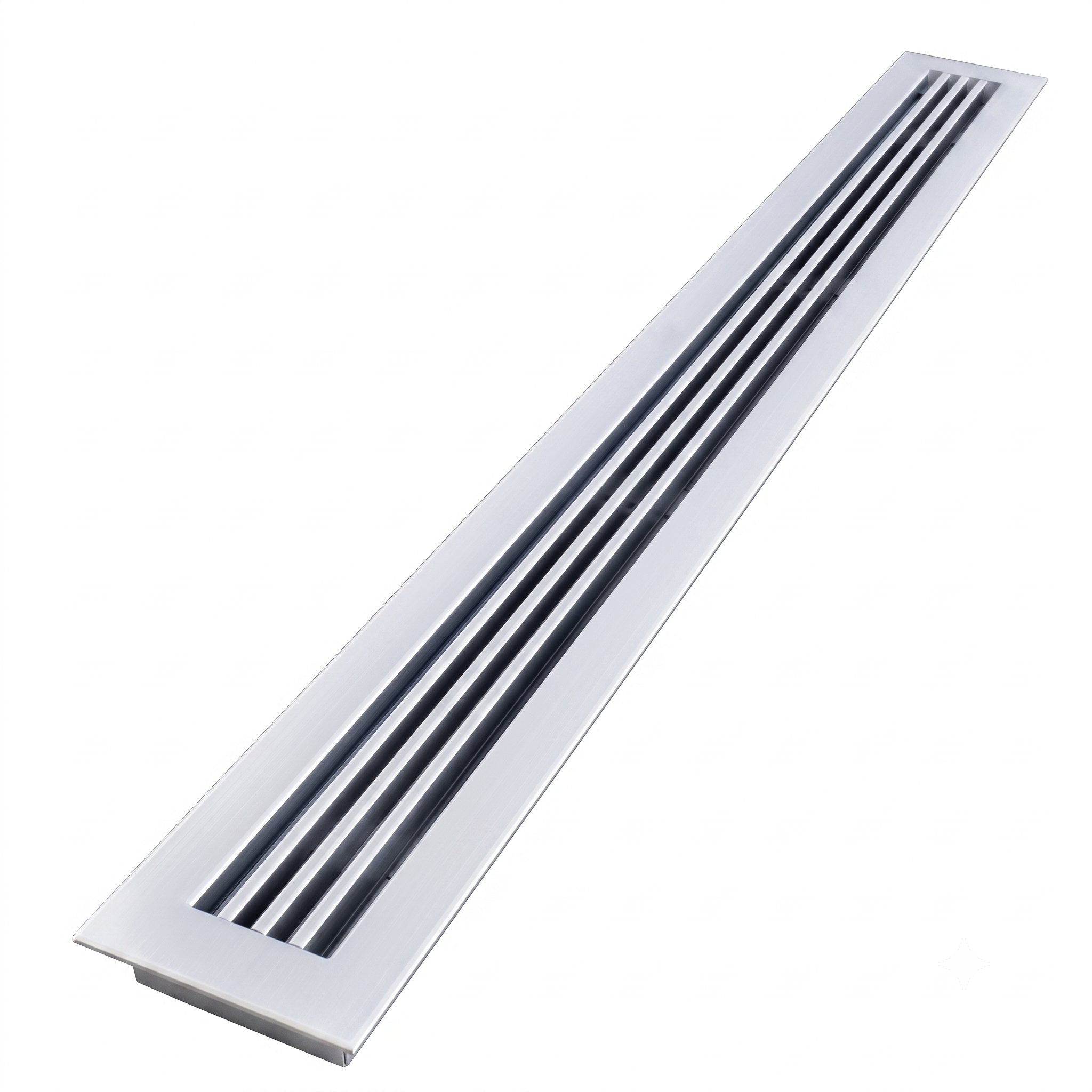

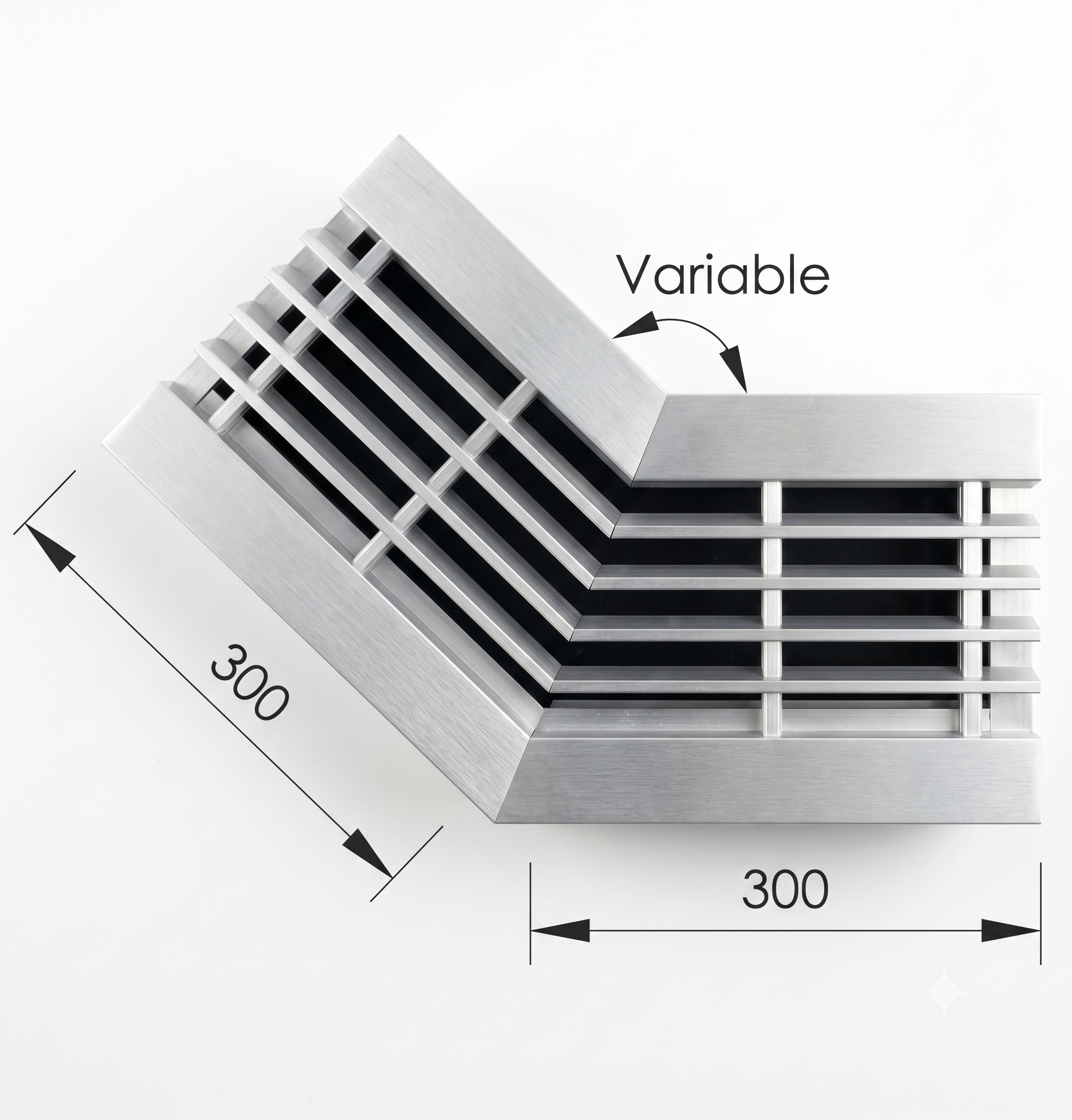

Linear Bar Grill
شبكة بار خطية
LBG Series linear bar grilles and registers — extruded aluminium with 15° blade deflection for residential, commercial and industrial HVAC systems.
Frame Material
Quick Query?
WhatsApp Us →
ISO 9001:2015SMACNADW144
Description
Product Description

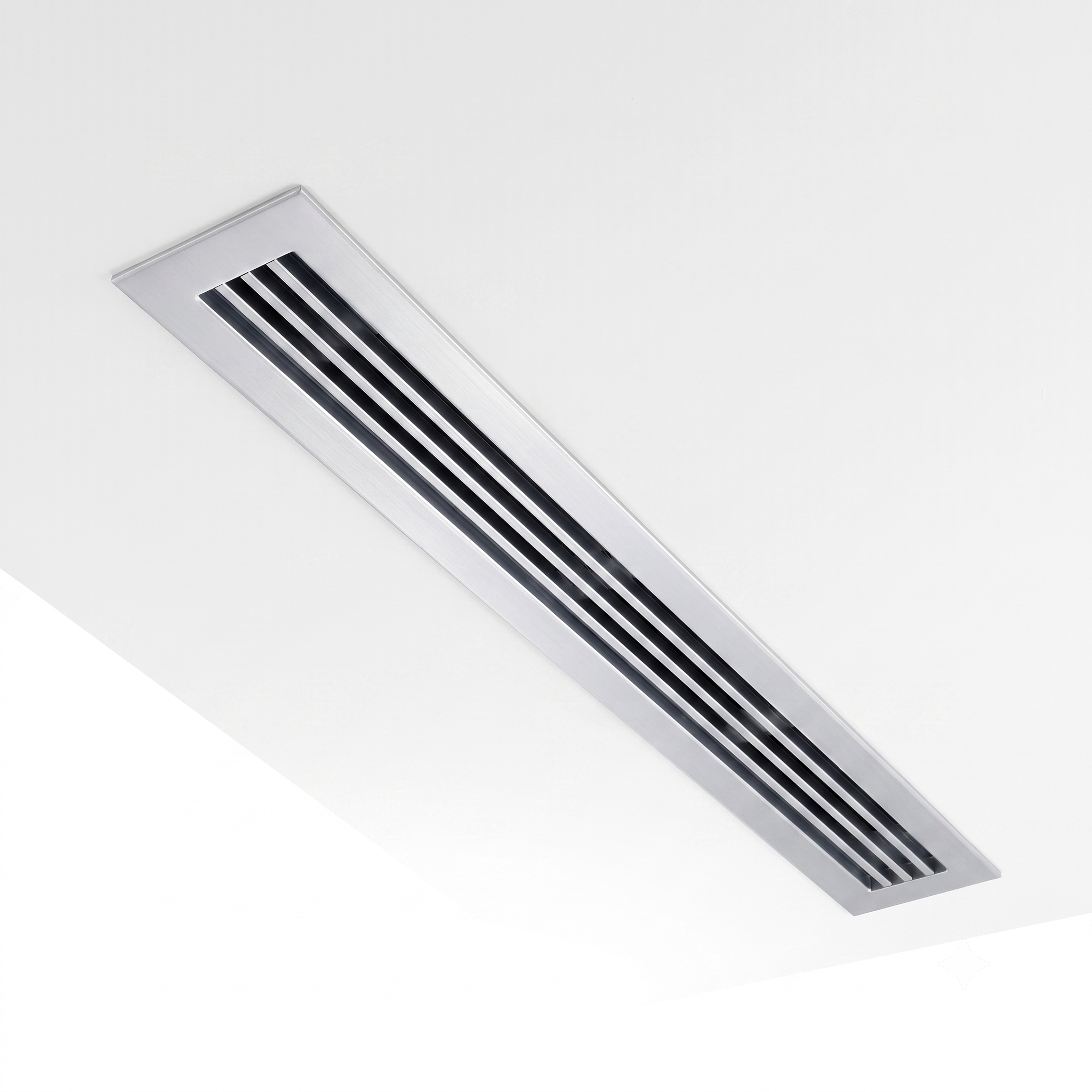

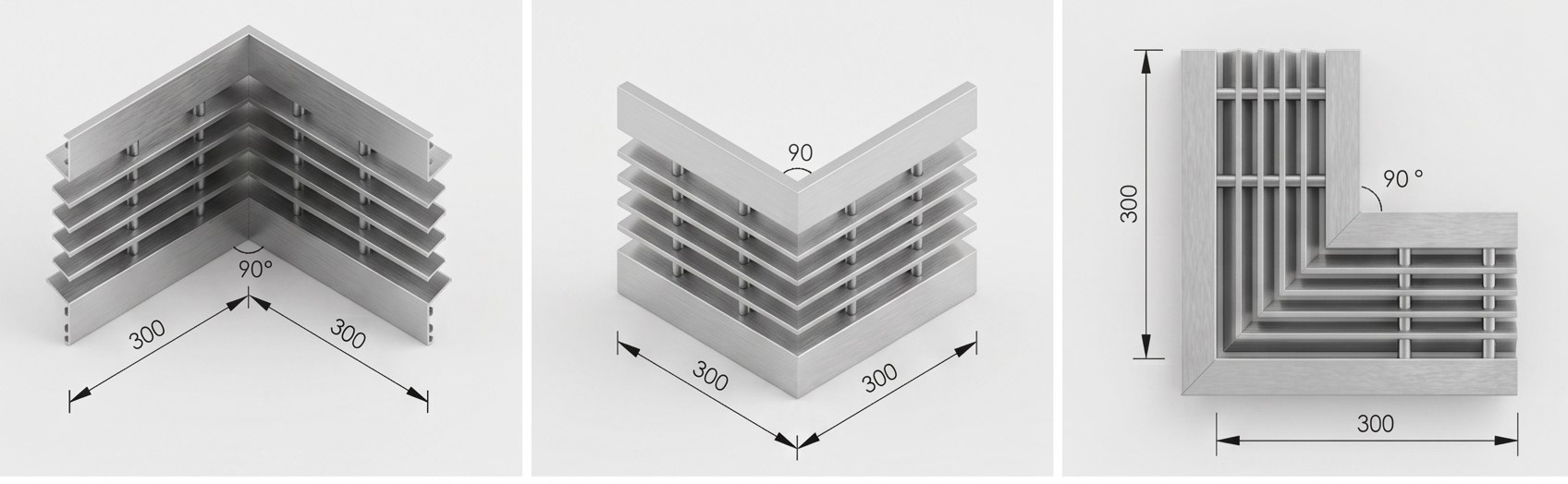

The LBG Series of linear bar grilles are meticulously crafted for a diverse array of settings, including residential, commercial, and industrial environments. Designed with versatility in mind, these grilles can seamlessly integrate into sidewalls or plenum boxes, providing optimal airflow distribution. When exposed air ducts are necessary, grilles can be attached to duct collars for a streamlined installation.
One & Two Way Deflection
Models available with 1-way (LBG1xx) or 2-way (LBG2xx) deflection and bar spacings of 6mm, 9mm, 12mm pitch.
Rear Vertical Blades Option
Models SLBG/SLBR with vertical rear blades for improved air distribution control — add "S" prefix to model code.
Three Fixing Types
Type A (screw fixing), Type B (with bracket, no flange holes), Type C (outer frame with spring clip for wall mounting).
Volume Control Damper
Optional opposed blade damper with black powder coat finish, adjustable by screwdriver through grille face.
Optional Rubber Gasket
Sealing gasket for noise reduction and air infiltration prevention.
Bar Spacings Available
@ 6mm (pitch 10), @ 9mm (pitch 13), @ 12mm (pitch 17) — standard heights from 25mm upwards.
Specifications
Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Frame & Blade Material | Extruded aluminium alloy profiles | — |
| Models — 1-Way | LBG110 / LBG113 / LBG117 | pitch 10/13/17 |
| Models — 2-Way | LBG210 / LBG213 / LBG217 | pitch 10/13/17 |
| Models — With Rear Blades | SLBG/SLBR (add S prefix) | — |
| Blade Deflection | 0° and 15° | ° |
| Fixing Types | Type A (screw) · Type B (bracket) · Type C (spring clip) | — |
| Noise Level | NC 15–35 dB | NC |
| Standard Finish | Polyester powder coat white RAL 9010 | — |
| Damper Finish | Black powder coat | — |
| Country of Origin | Egypt | — |
Applications
Fields of Application
Commercial & Industrial HVAC Projects
Quality Assurance
Tests & Certificates
Duct Test
Rigorous leakage and pressure testing to SMACNA and DW144 standards.
Duct Test 01
Duct Test 02
Duct Test 03
Air Tests
Air velocity and distribution testing.
Air Test 01
Air Test 02
